Misfit plus bonus CPC games

Instructions for this Basic tutorial's concluding game, Misfit, by Sean McManus

This game is called Misfit. You can find it on the disc, and it's also now playable on this web page in an embedded Amstrad CPC emulator.

Misfit is a sliding puzzle game written in Amstrad Basic, with a stereo soundtrack and the option to define your own designs. The definer can be used by itself for creating sprites, since it saves data in the same format as our sprite routine, although it's a bit limited for large projects. Its very basic instructions are shown on screen. For designing sprites and managing banks of them, see my Amstrad CPC Sprite Definer program.

Click the emulator below to activate your computer keyboard in it.

Misfit, the game, works by enlarging your design (or one of the two presets in the program) and cutting it up into tiles. The top right tile is always removed, and this should be kept in mind when designing puzzles. Additionally, you should try to ensure that the design has enough variety in it to make it clear which tile is which when the game begins.

Having scrambled the tiles, the game challenges you to slide them back to the correct place in the time limit given.

You can choose three levels of time limit and three levels of difficulty based on the number of shuffles the computer makes before letting you play.

The keys used are QAOP or the cursor keys.

In 2020, when I updated my disc of games, I made a simple hack to get cursor keys working with the game. It's not especially elegant, but you might find it useful if you have type-ins that you want to reconfigure the keys on.

Using the KEY DEF command in BASIC, you can configure the cursor keys to display a text character. In this case, I changed them to display the QAOP characters that are used to control the game. You can find the key numbers you need in the back of the Amstrad manual. I've used the ASC command here to avoid having to look up the ASCII codes for the characters I'm assigning to those keys. It also makes this code more readable. Here's the code:

key def 0,1,asc("Q"):key def 2,1,asc("A"):key def 8,1,asc("O"):key def 1,1,asc("P"):

This simple hack enabled me to update the game to use the cursor keys without having to look at where and how the keys are detected in the game. I used a similar approach to update Paclone and Alien Intervention, both on my disc. The downside is that if you break into BASIC to look at the listing, the cursor keys won't be working normally. You can use the LOAD command to load the program from disc, then delete the line that sets up the cursor keys, though. It's near the start, and it's commented.

Free bonus Amstrad CPC games

Although the original issue of The Basic Idea did not include them, the disc now also includes several games from Amstrad Action and Amstrad Computer User magazines, some of which are shown below. They also draw extensively on the techniques in this book and have their code unprotected for you to investigate.

Screenshot of Wallbuster

Screenshot of Alien Intervention

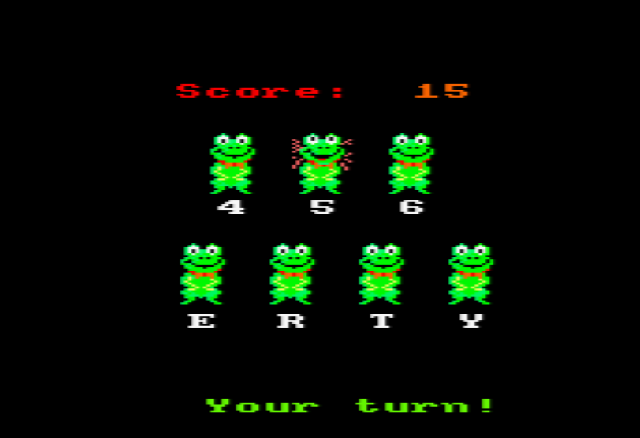

Screenshot of Gribbet!

Postscript

There is a version of Misfit in Javascript which you can play online now.

More Amstrad CPC tutorials and software

Find all my Amstrad CPC tutorials here, and download my updated software disc here!
